Explainer: CRI and Color Rendering in Industrial Lighting

Why Color Rendering Matters in Industrial Spaces

Workers in warehouses, plants, and distribution centers do not look at objects the way a designer looks at artwork. They check for damage, read labels, inspect surfaces, and judge whether a part fits. If the light distorts color, those judgments become harder. A rusted bolt may look darker. A painted safety line may lose contrast. A white glove may appear yellow.

Color rendering is the ability of a light source to make colors look true. In LED lighting, this is measured by CRI, or Color Rendering Index. It is not the same as brightness. A fixture can be very bright and still make colors look flat or shifted. Industrial lighting design must address both.

What CRI Actually Measures

CRI is a single number from 0 to 100. It compares how colors appear under a test light source to how they appear under a reference source, usually daylight. A CRI of 100 means perfect color matching. Real fixtures fall below that.

Most LED products sold for industrial use fall between 70 and 95. The gap between 70 and 80 is large in practice. At low values, colors can look dull. Skin tones may look sallow. Red objects may look brown. At values above 80, colors look more natural. At 90 or higher, subtle differences become visible.

The standard CRI score only tests eight colors. It can hide problems. A fixture with a high CRI may still render one color poorly. For that reason, engineers also look at the R9 value. R9 measures how well red appears. Red is common in safety markings, machinery, and product lines. A fixture with a low R9 can make red look weak even if the overall CRI looks acceptable.

How Color Rendering Affects Safety and Comfort

Poor color rendering increases visual fatigue. The eye works harder when it cannot rely on true color. In a long shift, that extra effort adds up. Workers may squint, move closer to work surfaces, or pause more often. In a warehouse, that means slower inspection and more time spent checking the same item.

Safety depends on contrast. Painted lines on the floor, hazard markings, and colored cables all rely on color to communicate. If a green line looks brown, it may be missed. If a red emergency sign looks dark, it may be harder to read. High CRI does not replace proper color coding. It supports it.

Comfort also depends on color temperature. CRI and color temperature are separate. A 5000 K light with low CRI can feel harsh and flat. A 4000 K light with high CRI can feel cleaner and easier to view. Industrial lighting design should treat them together.

Choosing the Right CRI for Your Facility

Do not treat CRI as an all-or-nothing choice. Match it to the task. General lighting for aisles and open floor space may work at 70 to 75. Inspection areas, quality control zones, and packing stations benefit from 80 or higher. If the space handles finished goods, cosmetics, food, or painted components, a higher CRI is usually worth the added cost.

A simple rule is to separate the space into zones. Each zone gets its own lighting goal. The dock may need enough light to see pallet labels. The production line may need color accuracy for visual checks. The office area may need the least demanding level. This approach avoids over-specifying every fixture and keeps the design practical.

When comparing fixtures, ask for measured CRI and R9 values from the supplier. Marketing materials often list a CRI range or a single number without context. A supplier who can provide a color rendering chart or measured data is easier to work with. If a product claims high CRI but cannot back it up, treat that claim carefully.

Worked Example in Plain Words

Imagine a distribution center with three main areas. The receiving dock has palletized goods with printed labels. The quality control room has small parts and painted components. The general warehouse floor has open racking and forklift traffic.

For the receiving dock, workers need to read labels and check for visible damage. A CRI of 80 with a moderate color temperature works well. The task is not fine inspection. It is enough to distinguish printed text and obvious blemishes.

For the quality control room, the task is different. Workers may compare a part to a reference sample. They may check paint color, surface finish, or a small defect. A CRI of 90 or higher, with a strong R9 value, makes that comparison more reliable. The light should not shift the color of the reference sample.

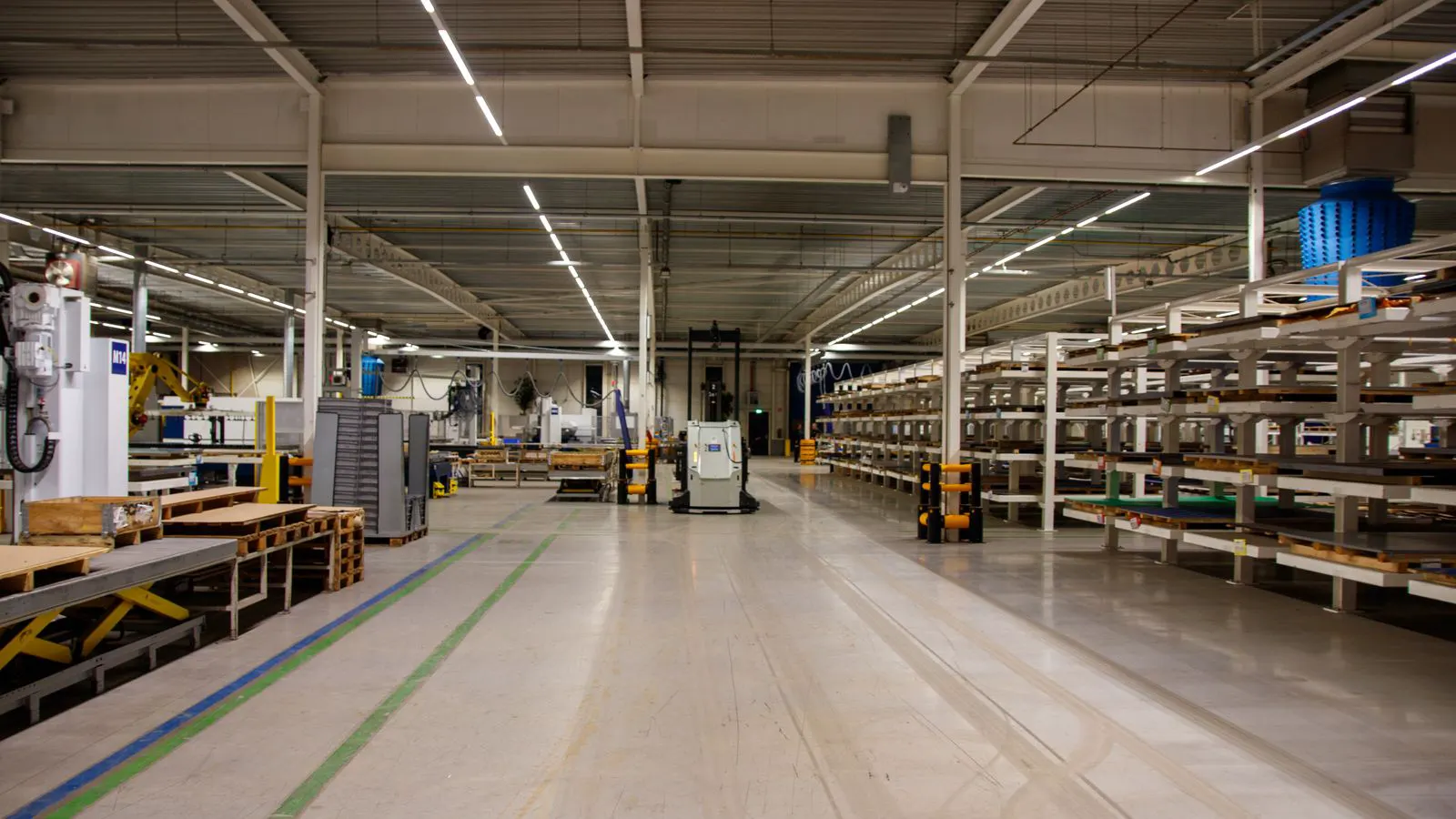

For the general warehouse floor, the priority is uniform light and glare control. A CRI of 70 to 75 is usually acceptable. Workers move through the space more than they inspect it. The lighting should be comfortable for long periods and safe for forklift operation.

This kind of zoning is a core part of industrial lighting design. It keeps the project cost-controlled and matches light quality to real work.

Common Mistakes in LED Color Rendering

The first mistake is buying by lumen count alone. A high lumen output does not fix poor color rendering. The second mistake is assuming all white LEDs look the same. They do not. Different phosphor blends produce different color rendering.

The third mistake is ignoring maintenance and driver quality. A fixture with a good CRI rating at the start of life may drift if the driver or phosphor degrades. Ask about warranty coverage for color rendering, not just lumen output. If a supplier only guarantees lumens, ask what happens if the light changes color over time.

The fourth mistake is using one fixture type for every area. It saves time in the catalog selection stage. It creates problems on the floor. Different tasks need different color quality. A single high-CRI fixture for the entire building costs more than needed in low-value areas. A single low-CRI fixture for the whole building creates comfort and safety issues in inspection areas.

How to Verify Color Rendering Before Buying

Request sample fixtures or measured data before finalizing a large order. If the supplier provides a CRI chart, look at R9, R12, and R15 if available. R9 is the most relevant for industrial use. R12 and R15 give a fuller picture of how green and purple appear, which can matter for painted equipment or product colors.

Visit a reference space if possible. Bring a known object, such as a painted panel or a printed label, and view it under the proposed fixture. Compare it to daylight or a known good light source. This is a quick field check. It will not replace photometric testing, but it catches obvious problems.

Document the selection. Record the CRI and R9 values in the specification sheet. Include the color temperature and the intended task for each zone. This creates a clear record for the project team and for future maintenance.

Practical Checklist for Sourcing

When you review a quote, check the following items:

1. CRI value for each fixture type
2. R9 value, if available
3. Color temperature options
4. Warranty terms for color rendering
5. Measured data sheet, not just a printed claim
6. Recommended use case from the supplier

If a supplier cannot provide these details, ask why. A clear answer is usually better than a vague one.

Final Thoughts

Color rendering is not a luxury in industrial lighting design. It is a functional requirement. It affects how workers see, how they judge quality, and how safely they operate in a large space. The goal is not to buy the highest CRI fixture everywhere. The goal is to match the light to the task. A well-designed industrial lighting system uses the right color quality where it matters and keeps costs reasonable where it does not.
